Description

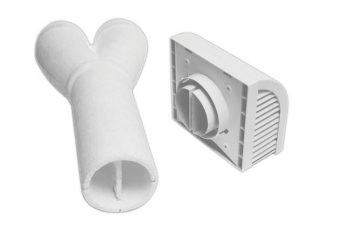

This Exterior Wall Cap accessory was designed for use with WhisperComfort® and Intelli-Balance® 100 ERV models. It conveniently allows both exhaust and supply airflow through a hole in the building envelope.
*FV-WC04VE1 is ideal for use in smaller, multi-family applications. Not recommended for use at CFM settings higher than 50 CFM.
| Specification | Description |
|---|---|
| Advanced Features | Multi-Speed |
| CFM | Less than 50 |
| Construction Type | single Family/ Manufactured Housing. Multi-Family. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling |
| Ventilation Design Approach | Continuous Ventilation. Balanced Ventilation |
| Duct Diameter | 4″ |
| Energy Recovery Ventilator (ERV) | Energy Recovery Ventilator (ERV) |
| Fan Type | Fan Only |
| Industry | Residential. Light Commercial |
| Mounting Options | Ceiling Mount. Wall Mount (UL) |
| Product Family Name | WhisperComfort ERV |
- Height: 32 1/4 inches
- Width: 11 1/4 inches
- Depth: 7 inches1
- Additionally, the WhisperComfort ERV itself has the following dimensions:
- Master Carton Dimensions: 29-9/16″ (height) x 18-1/16″ (width) x 13-3/8″ (depth)
- Length of Y-Shaped Adapter: 22-1/2″
- Exterior Wall Cap Height: 8-1/2″
- Exterior Wall Cap Width: 8-5/8″
- Exterior Wall Cap Projection: 4-1/2″
Compatible with:
WhisperComfort®ERV Balanced Air Solution (FV-04VE1)
